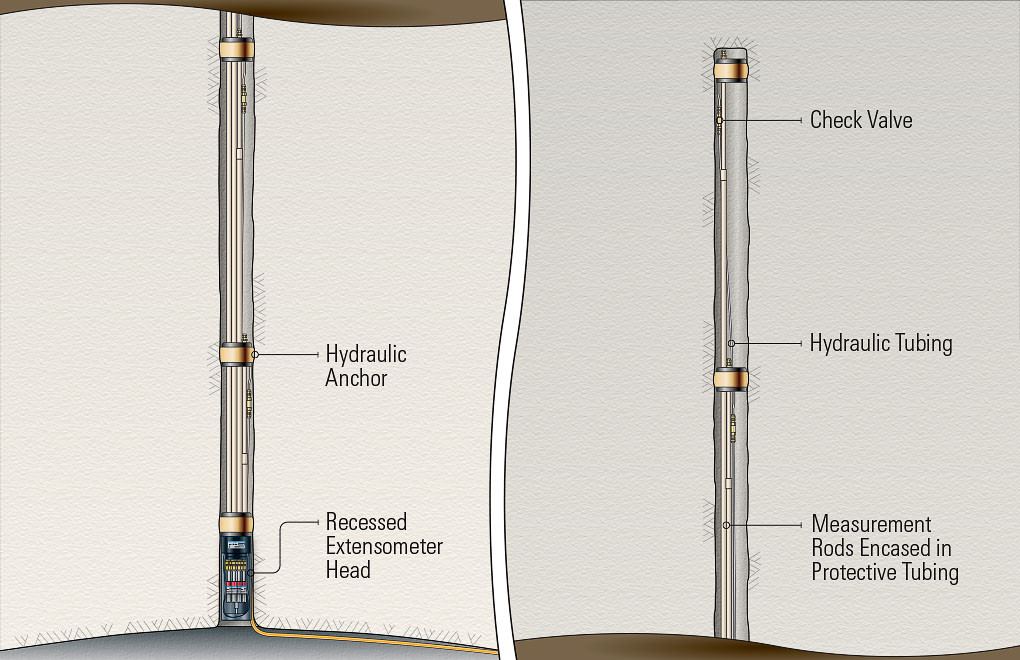

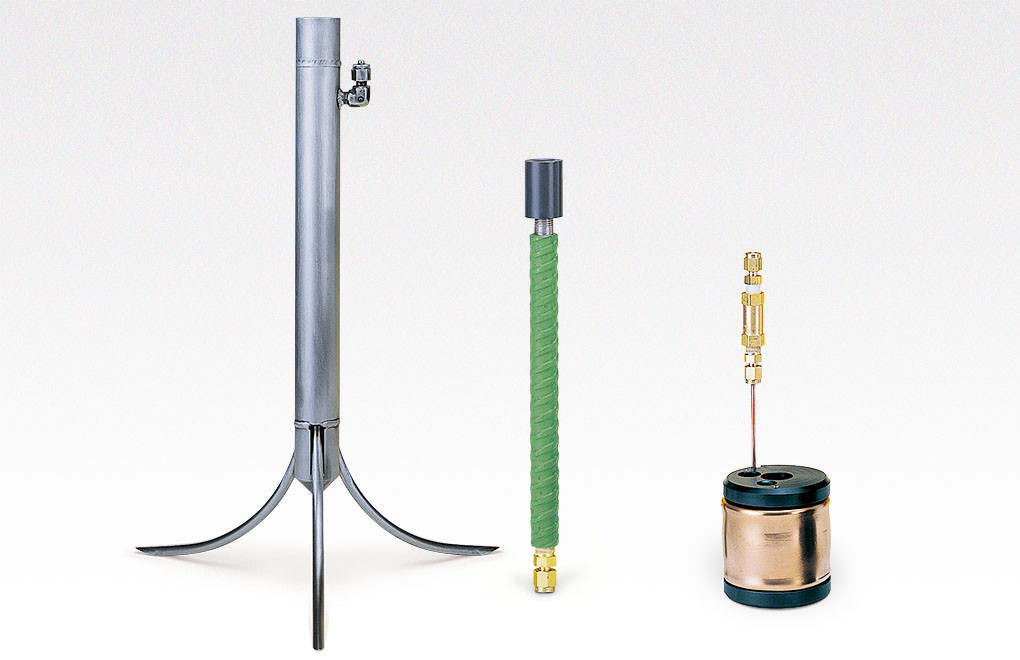

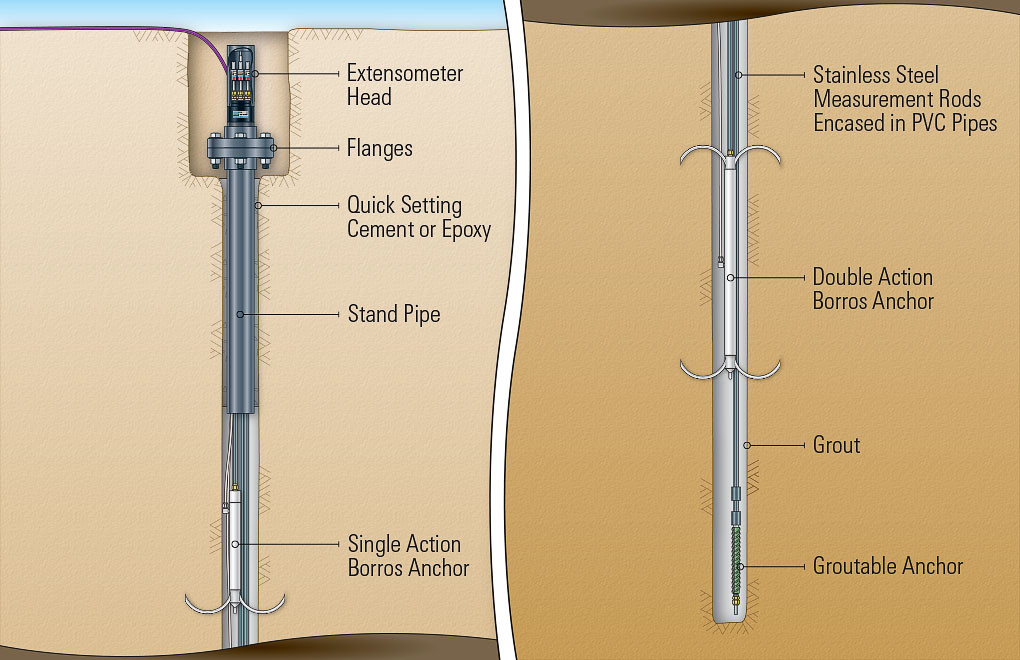

The Model 1100 Rod Type Borehole Extensometer utilizes measurement rods to connect sensors inside the head of the extensometer to anchors installed in a borehole. Movement of the anchors in relationship to the head of the extensometer, which is anchored at the mouth of the borehole, can be analyzed to reveal the magnitude of the deformation between the anchors. Readout is achieved by connecting the head of the extensometer to a portable readout, datalogger, or similar device.
Rod Type Borehole Extensometers Geokon
The Model 1100 Rod Type Borehole Extensometer utilizes measurement rods to connect sensors inside the head of the extensometer to anchors installed in a borehole.
| Brand |
Geokon |
|---|---|
| Standard Ranges |
12.5, 25, 50, 100, 150, 200, 300 mm |
| Least Reading |
0.025 mm |
| Minimum Borehole Diameter² |
73 mm |
| Maximum Length |
100 m |
Description
